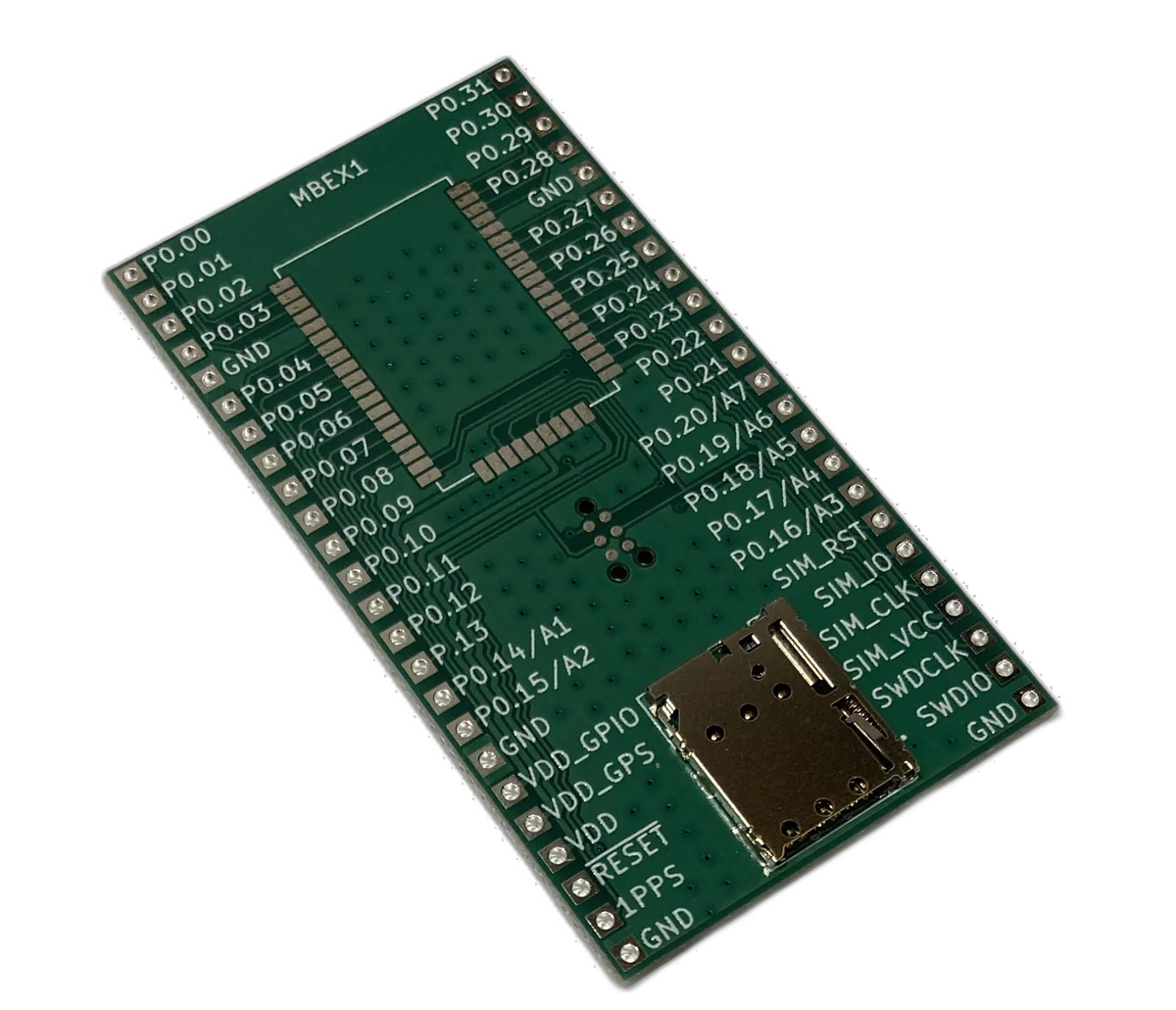

nRF9151 Micro Breakout Expansion board front view with 2.54mm headers and nano SIM slot

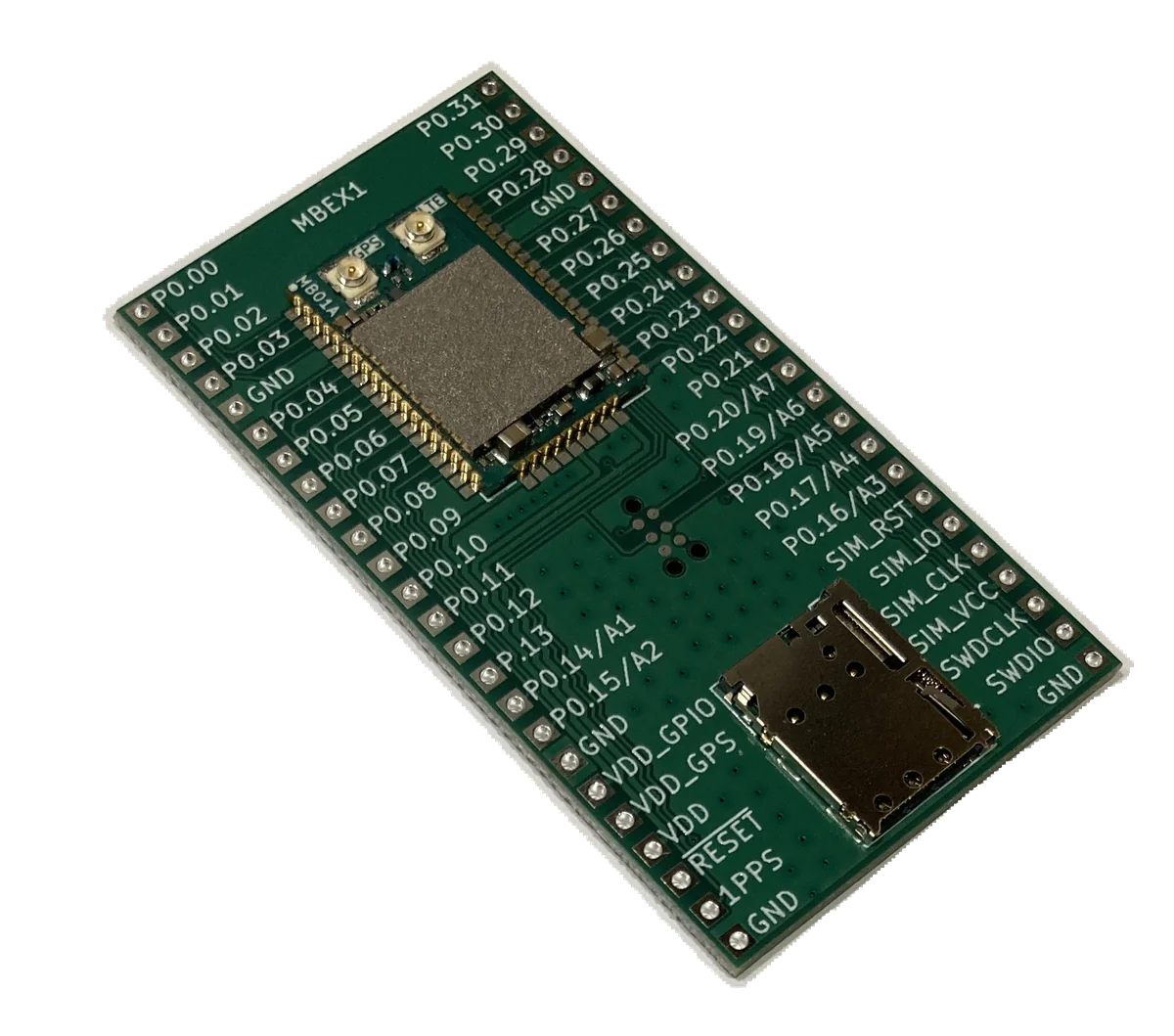

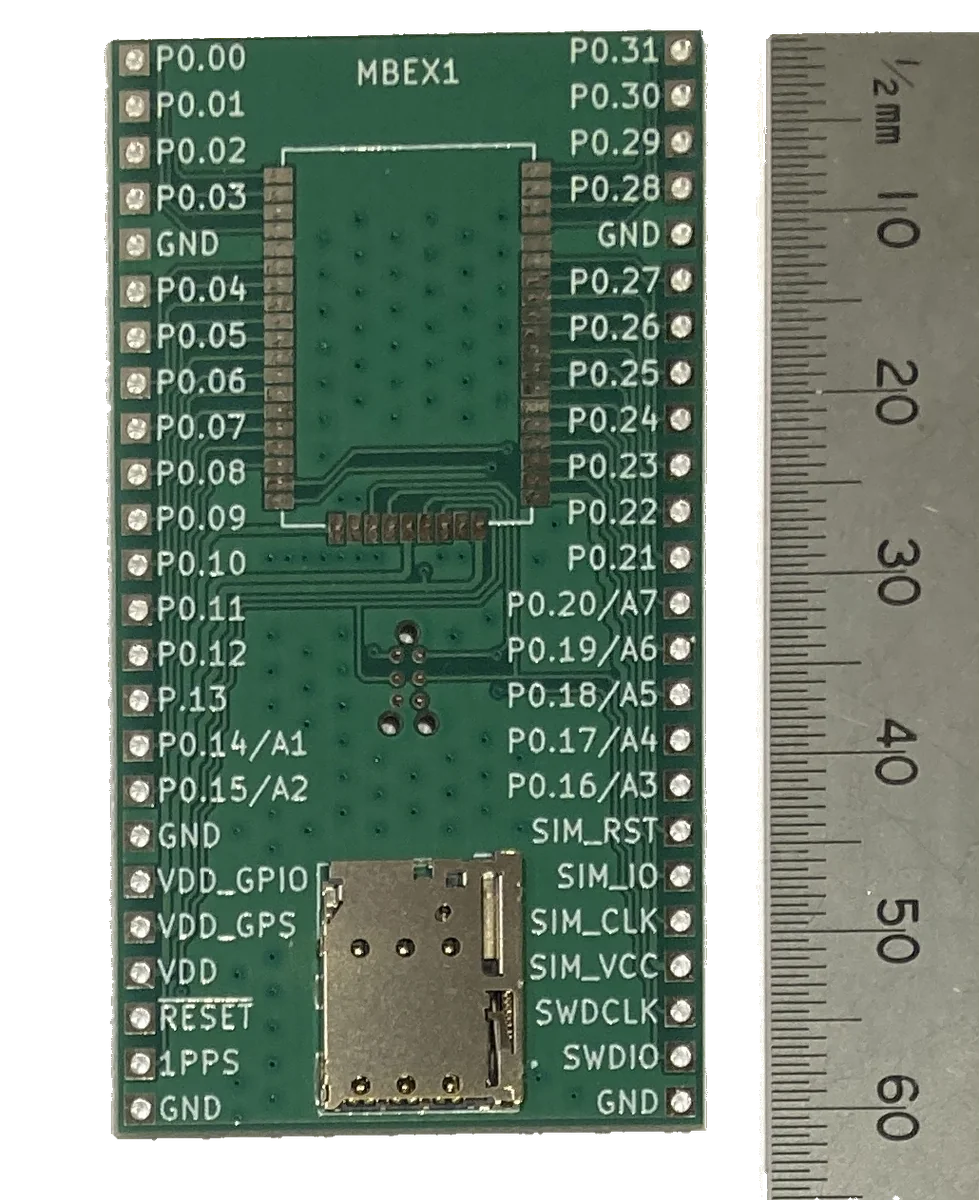

nRF9151 Micro Breakout Expansion board front view with 2.54mm headers and nano SIM slot nRF9151 Micro Breakout Expansion board top view showing nRF9151 module seated on board nRF9151 Micro Breakout Expansion board size comparison — 33.3 × 61.2 mm
Development Board

nRF9151 Micro Breakout Expansion

Expand the nRF9151 to a standard 2.54mm header for easy breadboarding

£9.99
In Stock

The nRF9151 itself is too small to breadboard directly. The nRF9151 Micro Breakout perhaps is still too small! This expansion board allows you to easily connect the nRF9151 Micro Breakout to a standard 2.54mm header, making it compatible with breadboards and perfboards. With this expansion, you can quickly prototype your projects without needing to design a custom PCB for the nRF9151 Micro Breakout.

  • Nano SIM card slot included
  • All nRF9151 Micro Breakout pins broken out to 2.54mm headers
  • 2.54mm header pins supplied
−
1
+
Technical Specifications
Dimensions33.3 x 61.2 mm
Pin Spacing12 x 2.54 mm wide
Pin Count48 (24 per side)
SIM SlotNano SIM (4FF)
