Development Board
nRF9151 Micro Breakout
The worlds smallest Nordic nRF9151 full pin breakout
£59.99
In Stock

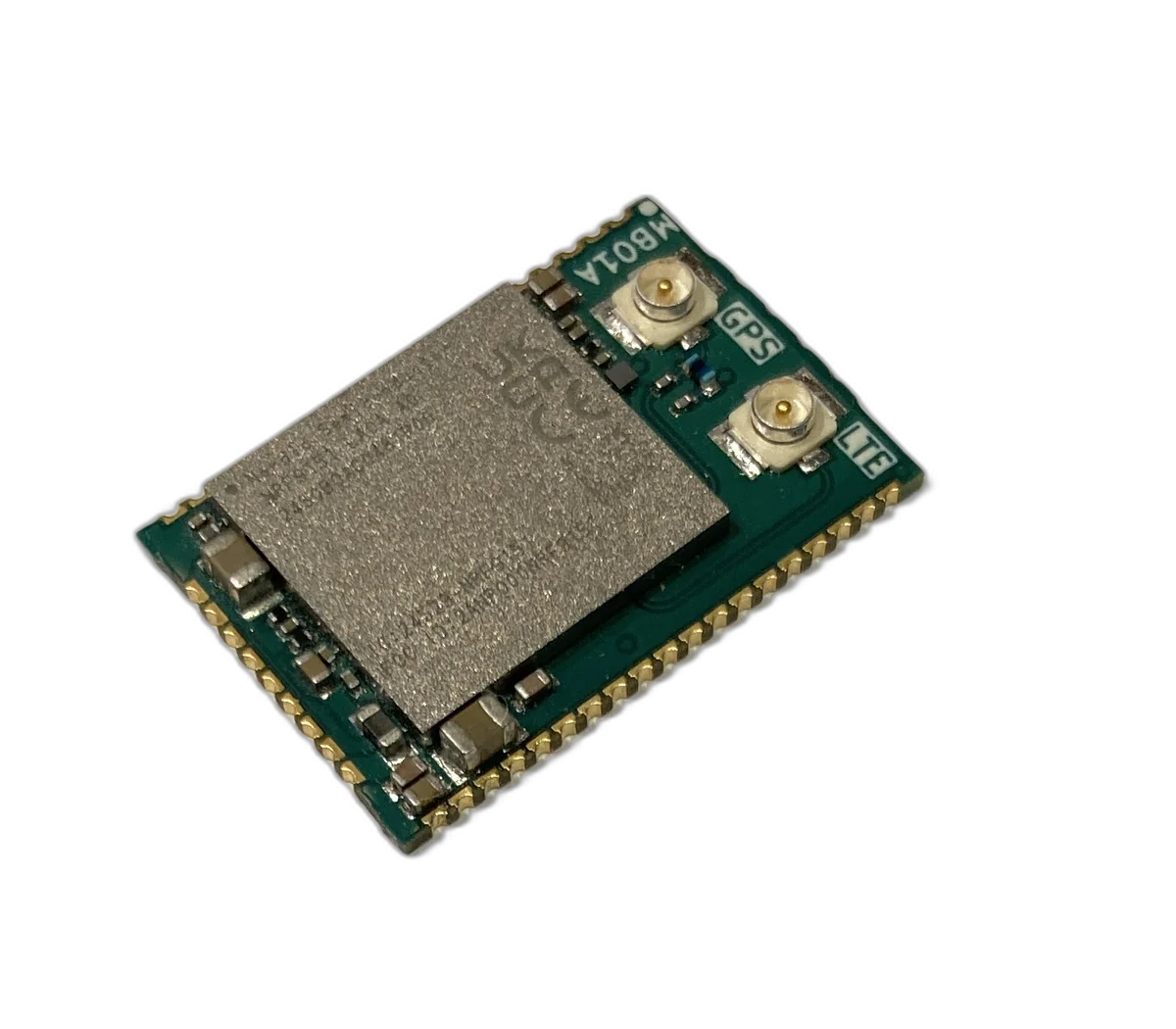

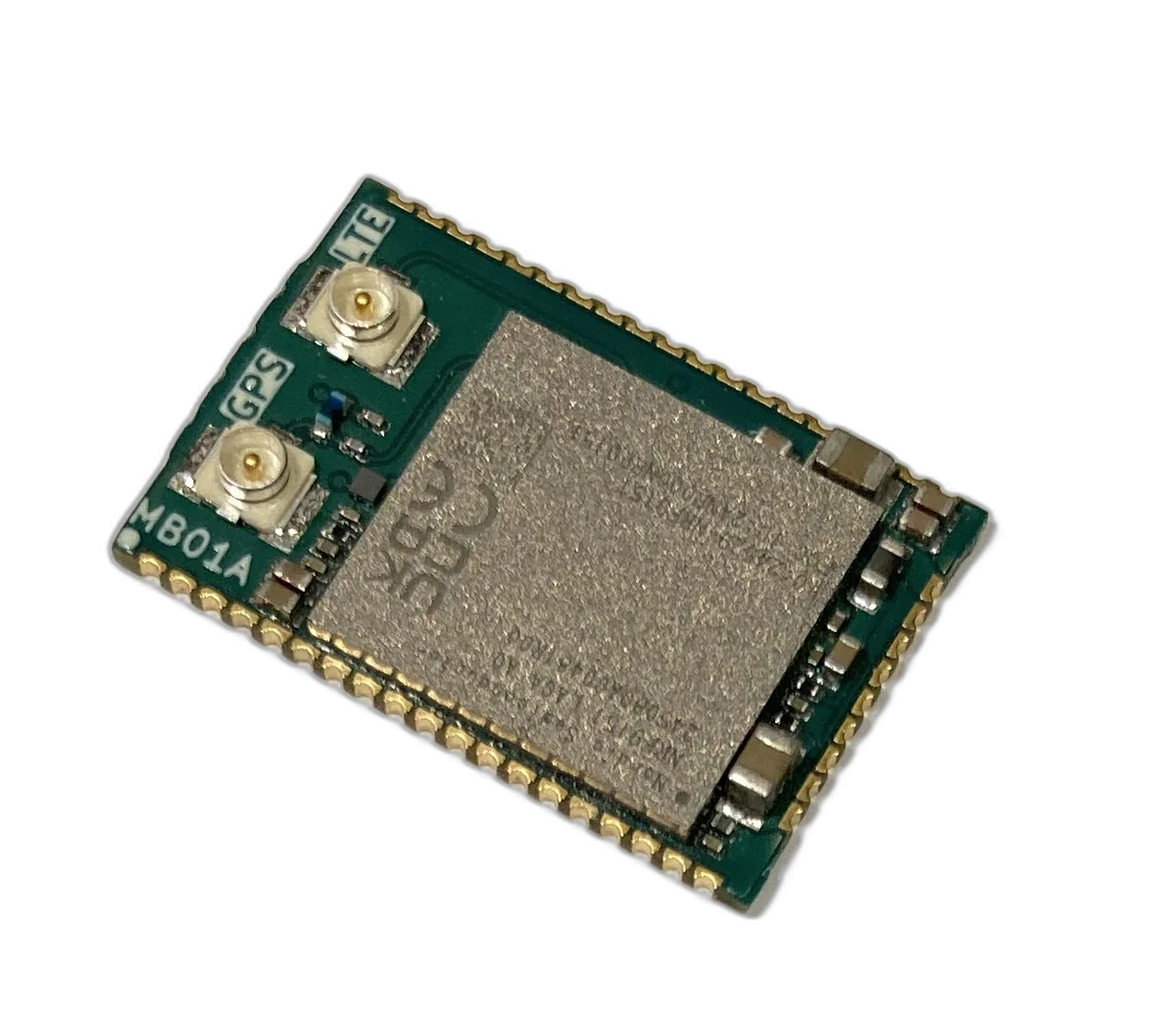

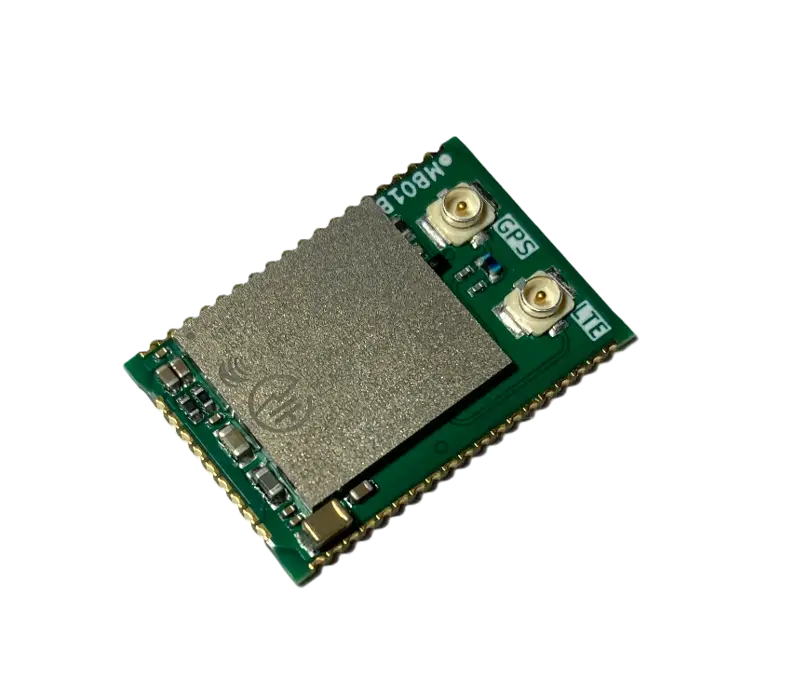

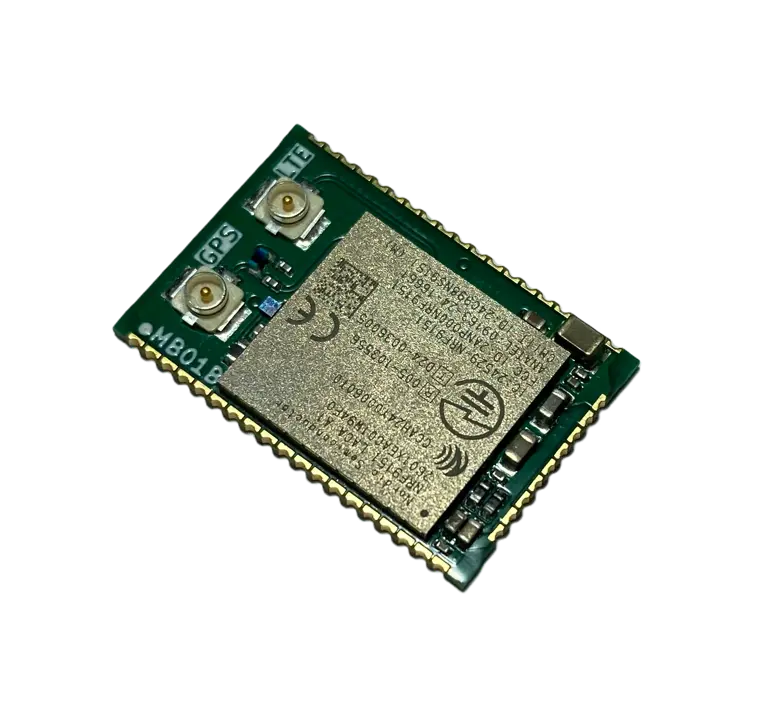

The nRF9151 Micro Breakout provides easy access to the Nordic nRF9151 SoC, which features an integrated GPS and support for NB-IoT and LTE-M cellular connectivity. This breakout board is ideal for developers looking to create IoT applications that require long-range communication and low power consumption. With its small form factor and comprehensive pinout, the nRF9151 Micro Breakout allows you to quickly prototype and develop your projects without the need for complex multilayer RF hardware design.
- Worlds smallest breakout of the nRF9151 SoC

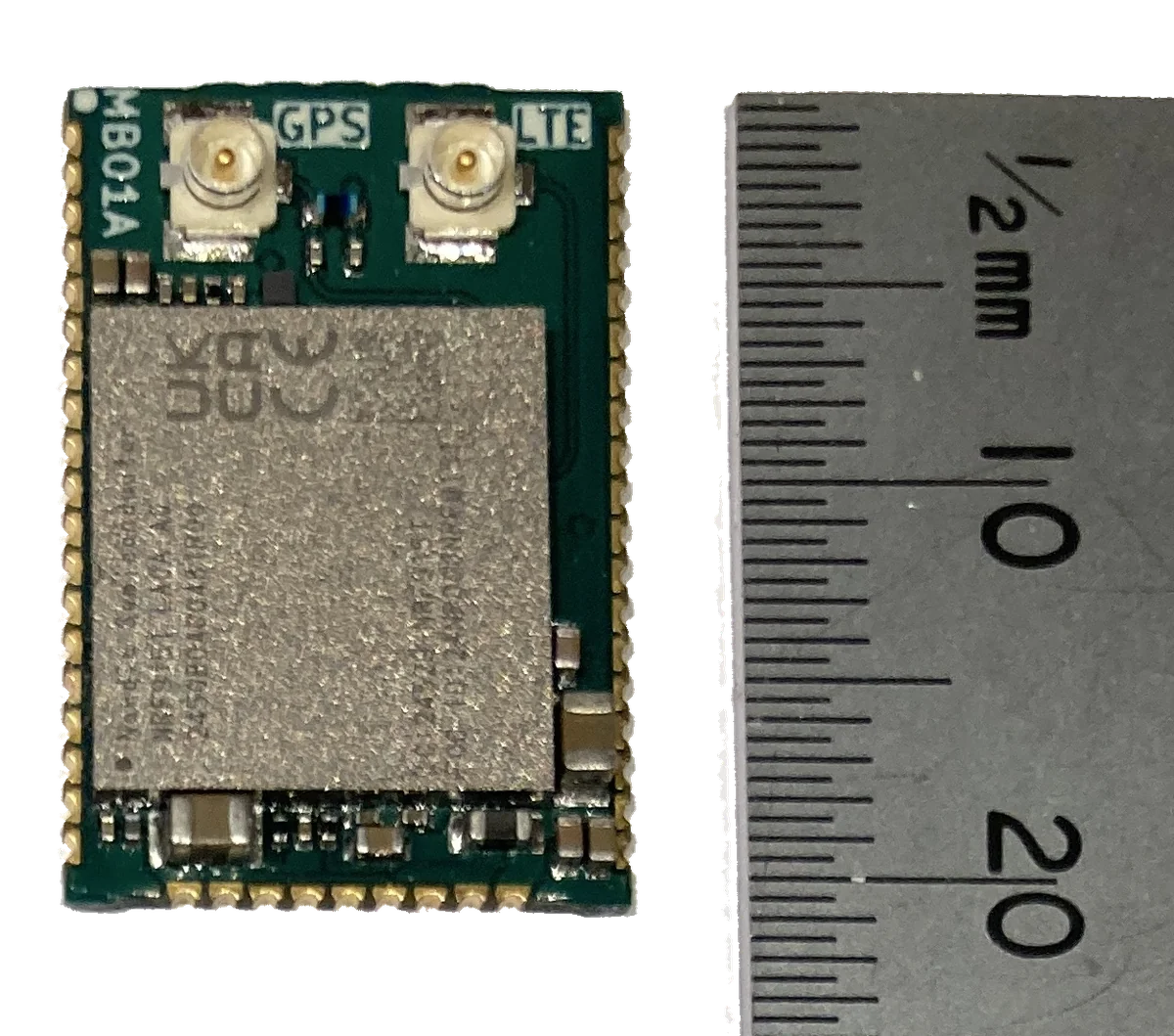

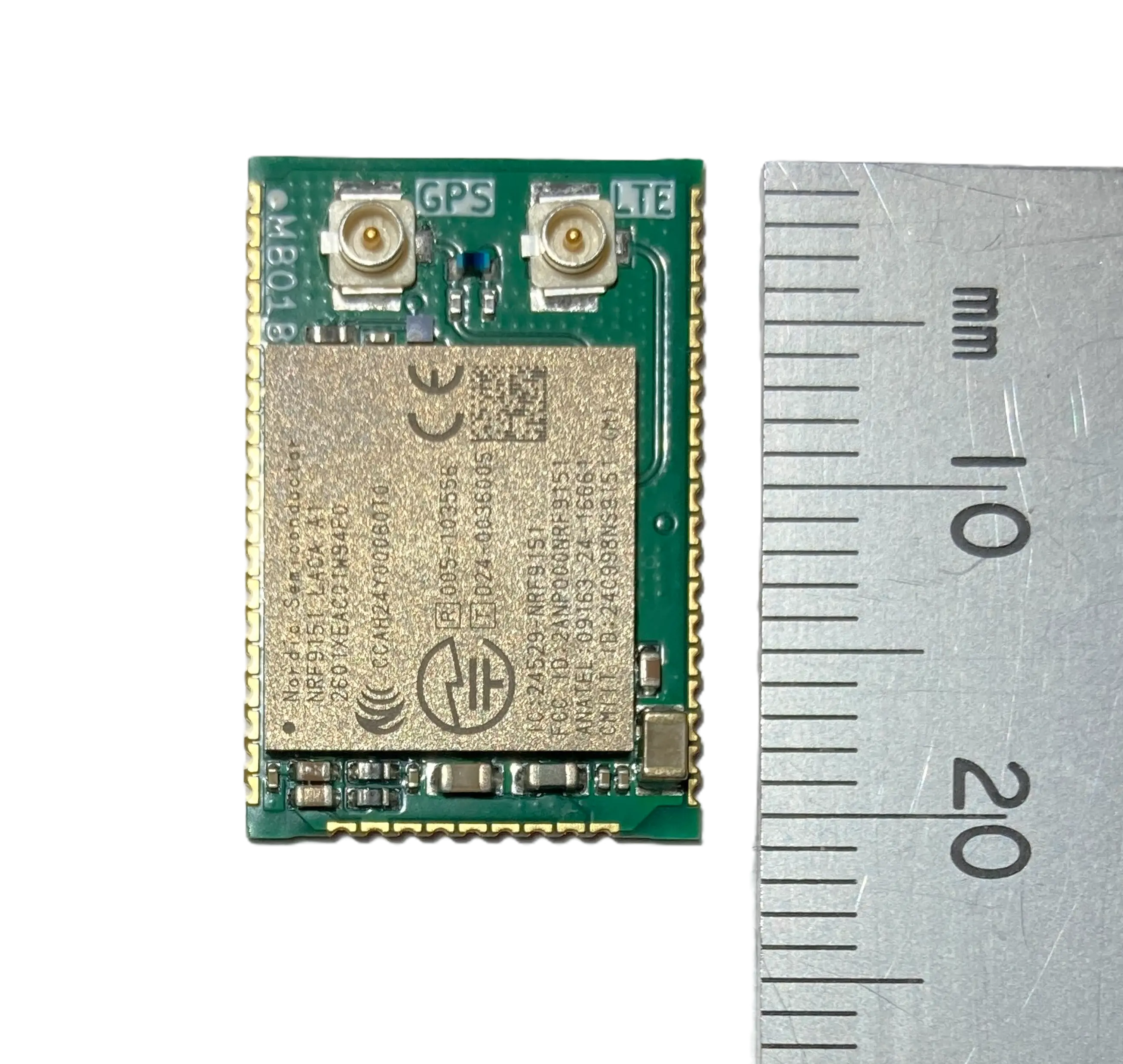

- Tiny 14 × 20.8 mm form factor
- Hand-solderable 1mm pitch pads

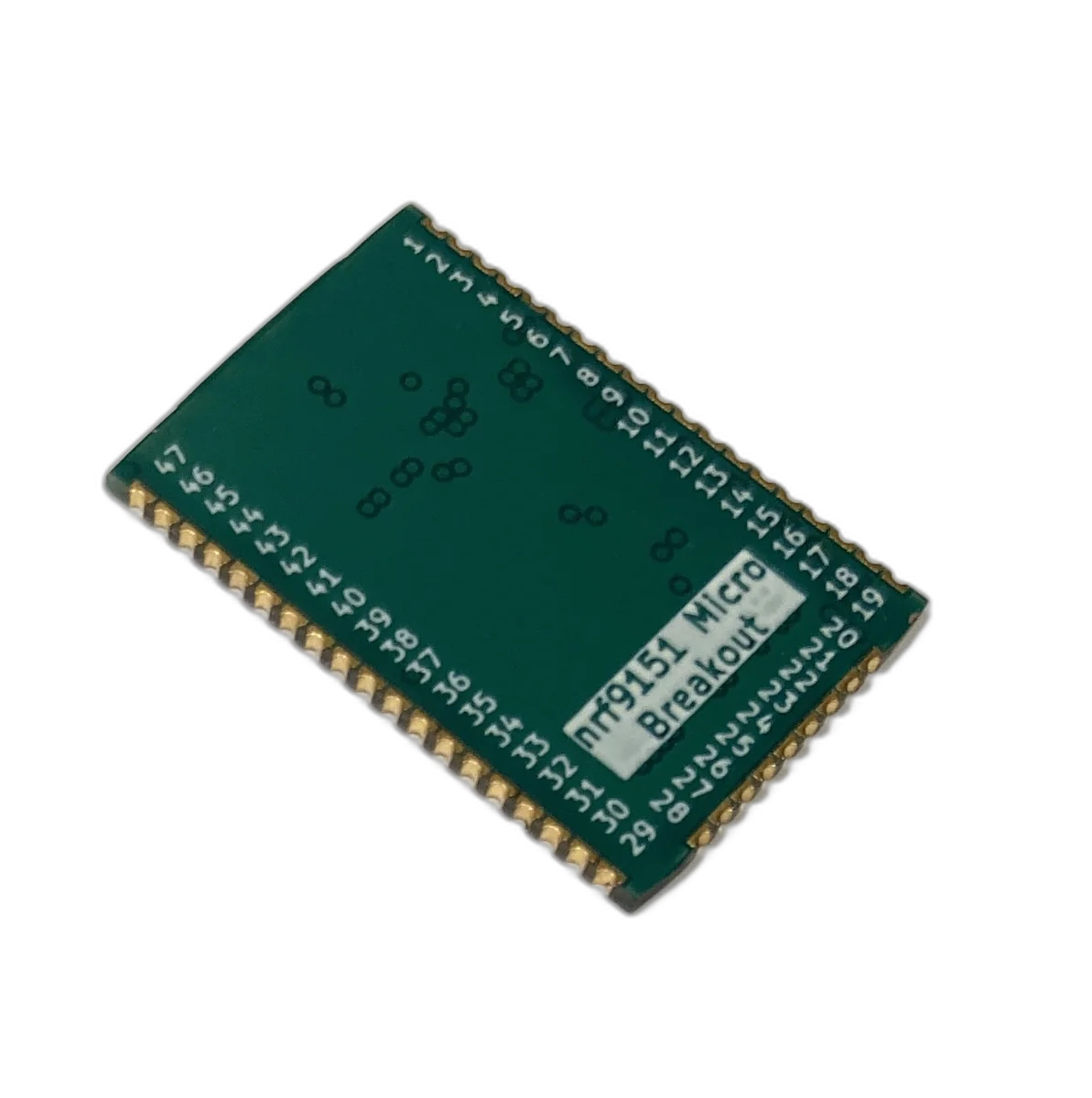

- Single sided for easy addition to custom PCBs
−
1
+
Technical Specifications
| Dimensions | 14 x 20.8 x 2 mm |
| Microcontroller | Nordic nRF9151, Arm Cortex-M33 |
| Flash | 1 MB |
| RAM | 256 KB |
| Connectors | 1 mm pitch castellated pads 0.8 mm wide |
Voltage Rails
| Rail | Min (V) | Nom (V) | Max (V) |
|---|---|---|---|
| VDD | 3.00 | 3.30 | 5.50 |
| VDD_GPIO | 1.70 | 3.30 | 3.60 |
| VDD_GPS | 1.00 | 3.30 | 5.50 |
